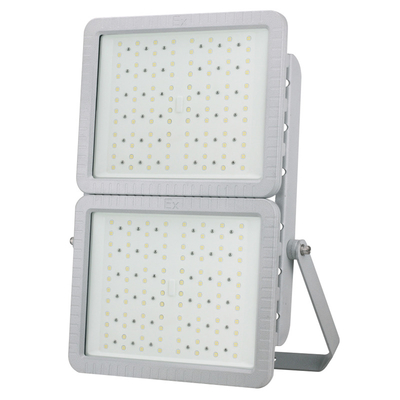

Hot Selling Aluminum Alloy Explosion Proof Wall Lights Ex Factory Explosion Proof Floor Light 500W 600W 640W Ex Proof Light

1 piece
MOQ
Hot Selling Aluminum Alloy Explosion Proof Wall Lights Ex Factory Explosion Proof Floor Light 500W 600W 640W Ex Proof Light
Features Gallery Product Description Request A Quote
Features
Specifications
Color Temperature(CCT): 2700-6500k
Input Voltage(V): 220V
Lamp Luminous Efficiency(lm/w): 120
Warranty(Year): 3-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting Solutions Service: DIALux Evo Layout
Product Weight（kg）: 35.28
CRI (Ra>): 80
Lamp Luminous Flux(lm): 13200-24000
IP Rating: IP66
Working Lifetime(Hour): 50000
Working Temperature(℃): -20 - 40
Light Source: LED
Product Name: LED Industrial Lights
Material: Aluminum Alloy
Anticorrosion Grade: WF2
Cable Outer Dia: 10mm-14mm
Inlet Thread: G3/4"
Ex-mark: Ex Db Eb Mb IIC T5/T6 Gb; Ex Tb IIIC T95℃/T80℃ Db
Hz: 50Hz
Installation: Wall Mounted/Ceiling Type/Boom Type/Flange Type/Fence Type
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1.Carton box. 2. Customer Brand OEM Packing Box.
Supply Ability: 10000 Piece/Pieces per Month
Product Description
TECHNICAL PARAMETER
Model and specification
Explosion proof sign
Light source
Lamp type
Power (W)
Luminous flux (Lm)
Color temperature (k)
Weight (kg)
BED51-□
Ex db eb mb ⅡC T5/T6 Gb
Ex tb ⅢC T95°C/T80°C Db
LED
I
30~100
3600~12000
3000~5700
7
AC380V
II
110~200
13200~24000
11
AC-16/X
AC220V
III
210~320
25200~38400
17
AC380V
IV
350~400
42000~48000
23
AC-32/Z
AC220V
32A
V
450~600
54000~72000
36
Rated voltage/frequency
Inlet thread
Cable outer diameter
Degree of protection
Anti corrosion grade
220V/50Hz
G3/4
Φ10~Φ14mm
IP66
WF2
Emergency starting time (S)
Charging time (h)
Emergency power (within 100W)
Emergency power (W)
Emergency lighting time (min)
≤0.3
24
≤20W
20W~50W可选
≥60min、≥90min可选
PRODUCT PICTURES
INSTALLATION DIMENSIONS
Serial No
Specification and model
Type of lamp housing
Power range (W)
A(mm)
B(mm)
C(mm)
H(mm)
1
BED51-100W
I
30~100
308
255
105
240
2
BED51-200W
II
110~200
448
308
150
220
3
BED51-320W
III
210~320
480
380
200
330
4
BED51-400W
IV
350~400
448
616
300
220
5
BED51-600W
V
450~600
480
760
300
330
Serial No
Name
Remarks
1
LED explosion-proof flood light (projection light)
/
2
Explosion proof junction box G3/4 tee
User option
3
Explosion proof flexible pipe G3/4NGD-20X500, one inside and one outside
Length can be customized
COMPANY PROFILE
OUR CERTIFICATE
EXHIBITION
PACKAGING & TRANSPORTATION
FAQ
A:Are you factory or trading company?
Q:We are a factory and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans explosion-proof junction box and anti-corrosion&dustproof&waterproof lights.

A:What certificates do you have？
Q:We have passed ATEX, IECEx, and with a lot of National Patents.

A:What place are your products used in?
Q:They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, military and other industries.

A:Can I have a sample order?
Q:Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

A:Can youaccept customized?
Q:Yes. Please inform us and confirm the design firstly based on our sample.
