Home /Products/Wall Mounted Explosion Proof Lights/Taiyi explosion-proof DC24V waterproof and anti-corrosion led light for cnc machine 12W/18W/24W/30W/36W

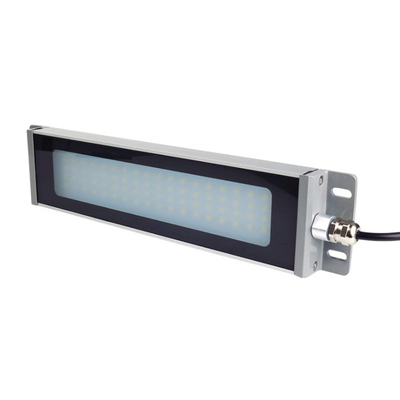

Taiyi explosion-proof DC24V waterproof and anti-corrosion led light for cnc machine 12W/18W/24W/30W/36W

100 Pieces
MOQ
$38.00(100 - 149 Pieces) $32.00(150 - 199 Pieces) $26.00(>=200 Pieces)
Price
Taiyi explosion-proof DC24V waterproof and anti-corrosion led light for cnc machine 12W/18W/24W/30W/36W
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Explosionproof
Color Temperature(CCT): 3500K (Warm White)
Input Voltage(V): 85-265
Lamp Luminous Efficiency(lm/w): 70
Warranty(Year): 3-Year
Color Rendering Index(Ra): 80
Support Dimmer: No
Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation
Lifespan (hours): 10000
Working Time (hours): 10000
CRI (Ra>): 70
Lamp Luminous Flux(lm): 10000
IP Rating: IP66
Working Lifetime(Hour): 100000
Working Temperature(℃): -25 - 45
Base Type: AR111
Light Source: LED
Product Name: Led Explosion Proof Lamp
Application: Chemical Industry
Power: 10W
Warranty: 1 Year
Material: Aluminum Alloy
Lamp Luminous Efficiency: 115
Type: Led Explosion Lamp
Item: Ip65 Light Fitting
Power Factor: 0.95
Certification: CCC, Ce, CQC, RoHS
Basic Infomation
Certification: CCC, ce, CQC, RoHS
Payment & Shipping Terms
Packaging Details: Packed in hard cartons and lined with thin film inside
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Product Description

Taiyi DC24V waterproof and anti-corossion led light for cnc machine 12W/18W/24W/30W/36W

Product Feature
Feature of Optical System:
Imported chips are always the priority, which possess the excellent lumen maintenance and high optical efficiency
Adopting SMT, it can dramatically improve the high thermal conductivity Adopting the latest Nanotechnology and its illuminance has been improved by 16.67%, compared with plated engineering plastics
Feature of Drive System:
Adopting constant current driving, which has the effect of short circuit and overvoltage protection
It can make the integrated emergency function, which has the effect of easy and simple installation. In addition, it can start the emergency function of power reduction, which can save more energy for emergence under the environment without people and can improve the function of fire safety
Excellent compatibility, it cannot be bothered by other electric appliances, and it can make the voltage tolerance fluctuate 25%
Adopting adhesive sealing technology is to make sure the components and parts can heat and not be corroded
Feature of Whole Light Structure:
Standardized heat radiation structure, each part can make independent heat dissipation
Exposed fixed parts & its accessories adopted 304 stainless steel, which has stronger anticorrosive performance
Adopting the integrated emergency function, there’s no need to provide electric appliance box, it’s convenient to install and maintain
Three Installation Methods: ceiling type, road type and wall mounting type

Product Paramenters
Type
LED ultrathin light
Life Span
50000Hrs
Material
metal cover+tempered glass
Color Temperature
4000k/6400k
Light Source
SMD LED
Luminance Efficiency
100-200LM/W
Power Voltage
24V
CRI
>80
Product Power
10W/12W/18W/21W/28W
Surface Temperature
<50。
Protection Grade
IP67
Installation Method
end cover installation
Model
Power
Light Source
Window
Voltage
Luminous Flux
CCT
Lampshade
Length
Install
LP 031
10W
SMD LED
150*40.8
DC24V
1200lm
4000k/6400k
GLASS
252mm
235mm+/-5
LP 032
12W
SMD LED
200*40.8
DC24V
1440lm
4000k/6400k
GLASS
302mm
235mm+/-5
LP 033
18W
SMD LED
300*40.8
DC24V
2160lm
4000k/6400k
GLASS
402mm
235mm+/-5
LP 034
21W
SMD LED
350*40.8
DC24V
2400lm
4000k/6400k
GLASS
452mm
235mm+/-5
LP 035
28W
SMD LED
450*40.8
DC24V
3360lm
4000k/6400k
GLASS
552mm
235mm+/-5
Details Images
Applications
Company Profile
Chengdu Taiyi Energy Technology Development Co., Ltd. was founded in 2011, located in High-tech Zone of Chengdu city, with registered capital of 50 million yuan. The company's main business is to install and maintain explosion-proof lamps, induction cookers, electrical control devices, power supply and distribution systems, drilling fluid purification system equipment and accessories, and well site standardization circuit for oil and natural gas field construction, design and manufacture. Based on the energy industry, combined with the concept of green, environmental protection and safety, combined with the integration of Wiener electrical products, LED explosion-proof lamps, explosion-proof and automatic control, the company has formed its unique product characteristics. Through years of service to large enterprises such as CNPC and SINOPEC. it has accumulated abundant on-site operation experience. The company has explosion-proof electricity. First-class design and construction ability of equipment production, circuit construction and other professional technology. Through eight years development, we always stick to the philosophy “Integrity service, quality and efficient.” We have the best goods, professional sales and technical teams. In addition, we have won the good reputation in the relative field. If you are interested in the product service of our company, we looking forward to your calling and online message.
Certifications
Shipping & Delivery
FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A: Generally, sample needs 7-10days, mass production time needs 15-30days. Q3. Do you have any MOQ limit for led light order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually adopt two ways to ship the commodities. Sea transportation and air transportation, it depends on the quantity of goods. Sea transportation usually will take 20-30 days to arrive and the air transportation will take 5-7 days to arrive. Q5. Is it OK to print my logo on led light product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q6: Do you offer guarantee for the products? A: Yes, we offer one year guarantee for the products. Q7: How to make this payment? A: T/T, Paypal, L/C
