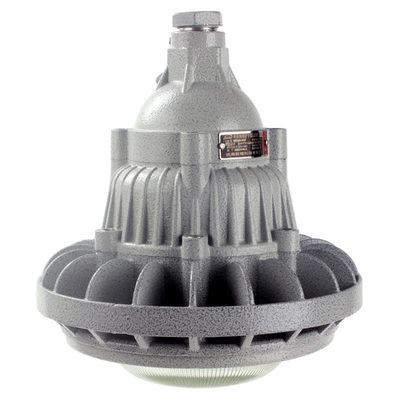

Aluminum Energy Saving High Lumen IP66 Wall Light Explosion Proof Outdoor High Bay Light Atex Bay Light Aluminum Spot Light

1 piece
MOQ
Aluminum Energy Saving High Lumen IP66 Wall Light Explosion Proof Outdoor High Bay Light Atex Bay Light Aluminum Spot Light
Features Gallery Product Description Request A Quote
Features
Specifications
Color Temperature(CCT): 2700-6500k
Input Voltage(V): AC220V
Lamp Luminous Efficiency(lm/w): 120
Warranty(Year): 3year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting Solutions Service: DIALux Evo Layout
Lifespan (hours): 50000h
Product Weight（kg）: 2.98
CRI (Ra>): 80
Lamp Luminous Flux(lm): 1200-3600
IP Rating: IP66
Working Lifetime(Hour): 50000
Working Temperature(℃): -20 - 40
Light Source: LED
Product Name: BED51-1
Material: Aluminum
Color: Grey
Type: Explosion-proof Light
IP Grade: IP66
Anticorrosion Grade: WF2
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1.Carton box. 2. Customer Brand OEM Packing Box.
Supply Ability: 100000 Piece/Pieces per Month
Product Description
TECHNICAL PARAMETER
Model and specification
Explosion proof sign
Light source
Lamp type
Power (W)
Luminous flux (Lm)
Color temperature (k)
Weight (kg)
BED59-□
Ex db ⅡC T6 Gb
Ex tb ⅢC T80°C Db
LED
I
10~30
1200~3600
3000~5700
2.6
AC380V
II
40~60
4800~7200
3.4
AC-16/X
AC220V
III
80~100
9600~12000
4.3
AC380V
IV
120~150
14000~18000
6.5
V
160~200
19200~24000
7.1
Rated voltage/frequency
Inlet thread
Cable outer diameter
Degree of protection
Anti corrosion grade
220V/50Hz
G3/4
Φ10~Φ14mm
IP66
WF2
PRODUCT PICTURES
INSTALLATION DIMENSIONS
Serial No
Specification and model
Type of lamp housing
Power range (W)
Φ(mm)
A(mm)
H(mm)
1
BED60-30W
I
10-30
209
224
85
2
BED60-60W
II
40-60
236
224
70
3
BED60-100W
III
70-100
252
219
95
4
BED60-150W
IV
120-150
306
240
95
5
BED60-200W
V
160-200
352
250
Serial No
Name
Remarks
Serial No
Name
Remarks
1
Fixed general lamp
/
7
11/4 guardrail lamp pole+aluminum alloy elbow
User option
2
Pendant lamp box AH-dG3/4
User option
8
U-shaped pipe clamp+pressing plate+nut+gasket
/
3
300mm G 3/4 straight rod
Length is optional for users
9
Pipe joint BGJ-G 3/4 two outer
4
Union BHJ-G 3/4 - one internal and one external
User option
10
Junction box AH-G3/4C tee flat cover
5
300mm G3/4 bent bar with tie bar 30 °
User option
11
11/4 flange lamp pole+aluminum alloy elbow
6
300mm G3/4 bent bar with tie bar 90 °

12
Mounting bracket

COMPANY PROFILE
OUR CERTIFICATE
EXHIBITION
PACKAGING & TRANSPORTATION
FAQ
A:Are you factory or trading company?
Q:We are a factory and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans explosion-proof junction box and anti-corrosion&dustproof&waterproof lights.

A:What certificates do you have？
Q:We have passed ATEX, IECEx, and with a lot of National Patents.

A:What place are your products used in?
Q:They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, military and other industries.

A:Can I have a sample order?
Q:Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

A:Can youaccept customized?
Q:Yes. Please inform us and confirm the design firstly based on our sample.
