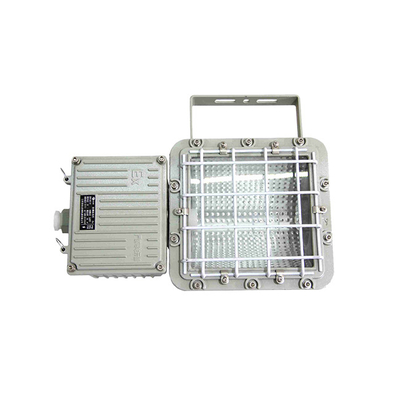

While ; Ceiling Flood Light Metal Halide Lamp Aluminum Explosion Proof Enclosure Work Led Explosion Proof Industry Light

100.0 Pieces
MOQ
While ; Ceiling Flood Light Metal Halide Lamp Aluminum Explosion Proof Enclosure Work Led Explosion Proof Industry Light
Features Gallery Product Description Request A Quote
Features
Specifications
Color Temperature(CCT): 5700K
Input Voltage(V): 220VAC, 50/60 Hz
Lamp Luminous Efficiency(lm/w): 130
Warranty(Year): 1-Year
Color Rendering Index(Ra): 70
Support Dimmer: No
Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation
Lifespan (hours): 20000
Working Time (hours): 50000
Product Weight（kg）: 1.4
CRI (Ra>): 70
IP Rating: IP65
Working Lifetime(Hour): 20000
Working Temperature(℃): -20 - 400
Light Source: HID
Model: BAT51
Voltage: 220V/50~60Hz
EX Mark (Gas): Ex D E IIC T6 Gb
Entrance Rules: G3/4"
Classification: Group II, Catogory 2 GD; Class I, Division 1 And 2,Group A,B,C,D
Size: 525*305*180mm
Mounting Style: Pendant;Ceiling,Wall Bracket, Stanchion
Adapted Lamp: 250W, 400W, 1000W (Metal Halide Lamp)
Certification: ATEX,RoHS,CE,CCC
Corrosion Resistant: WF2
Basic Infomation
Certification: ATEX,RoHS,CE,CCC
Model Number: BAT51
Payment & Shipping Terms
Packaging Details: Carton Page Packing and Wooden Box Packing
Supply Ability: 100000 Piece/Pieces per Month
Product Description
Specification

Applications

1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation

Features

1. Die casting shell made of cast aluminum alloy(cooper is less than 0.4%), surface is high voltage electrostatic spray paint after high speed shot blasting, good corrosion proof.
2. Stainless steel outer fasteners.
3. Tempered glass for transparent parts, high energy impact proof, anti glare design.
4. Easy installation and maintenance, reliable electrical performance.
5. With the hole for easy opening, and the patented structure( automatic suspended security structure), make lamp replacement fast, convenient and safe.

Electrical Data
Ex Marking
Ex d e IIC T6 Gb/ DIP A21 TA
Classification
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
IP Degree
IP65，IP66
Application
Zone 1, 2 & Zone 21, 22
Input Voltage
220VAC, 50/60 Hz
Wattage
250W, 400W, 1000W (Metal Halide Lamp)
Conduit Entries
G 3/4"
Mounting Styles
Pendant; Ceiling; Wall Bracket;Stanchion
Corrosion Resistant
WF2
Details Images

1. Aluminum alloy shell, using outdoor plastic powder, high-quality aluminum alloy die-casting, surface high-pressure electrostatic
spray, high hardness, good explosion-proof performance, and impact resistance.


2. The lamp body is mostly made of epoxy resin for direct sealing. The protection level of the rice is IP65~IP66, and it can be used
outdoors in rain.


3. The reflector is made of high-purity aluminum with a parabolic shape, which has a high dimming rate; it has a long range of light stealing and an effective distance of up to 10 meters.

4. An air convection hole is set between the light source cavity and the power supply cavity to effectively dissipate the heat of the light source cavity by air circulation to ensure the service life of the lamp
Mounting Styles
Product Display
