IIA CNEX ATEX BYS Explosion Proof Gas Station Lamp Corrosion Proof Light Led Explosion Proof Tube

 CNEX ATEX  BYS Proof Explosion Gas Station Lamp Corrosion Proof Light Led Explosion Proof Tube

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T5.

3. Hazardous zone : 20. 21. and 22

4. Flammable dust atmosphere.

5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T5.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB3836.9, GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC60079-18, IEC61241-1-1, EN60079-0, EN60079-1,EN60079-7, EN60079-18 EN61241-1-1,
• Ex-proof Mark:Exedmb II CT5 Gb, DIP A21 TA, T5.
• Rated voltage: AC220V
• Ligting Source: Plz Refer the Selection Table.
• Protection grade:IP65, IP67
• Corrosion-proof grade:WF2
• Inlet Thread: 2-M25×1.5
• Cable outer dia:9mm~14mm
• Battery charging time:≤24h
• Emergency Start time:≤0.3s
• Emergency lighting duration:≥90min

Selection Table:

Product Features:

• SMC Glass fibre reinforced polyester(GRP) Enclosure, has benefits of high strength, impact resistance and corrosion resistance.
• Lampshade is injiected of polycarbonate with benefits of high light transmittance and impact resistance.
• Labyrinth seal structure with strong water resistance and dust resistance.
• Take name brand fluorescent tube with long service life and high light efficiency.
• Exclusive explosion proof ballast.
• Design with convenient opening method, turn opening mechanism as per indication to open cover.
• Built-in limit switch, de-energizing when open cover to assure the safety.
• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
• Inside the emergency unit designed with over charging and over discharging protection circuit.
• Steel conduit or cable wirings.

Order Information :

• Lamps has factory configuration light source, can be used directly access power;
• Take emergency unit, installation only ceiling type and boom type applicable;
• When double tube fluorescent lamp start emergency unit, Only one tube work.
• It is default pendant type is side entry type. Plz indicate when need upwards entry.

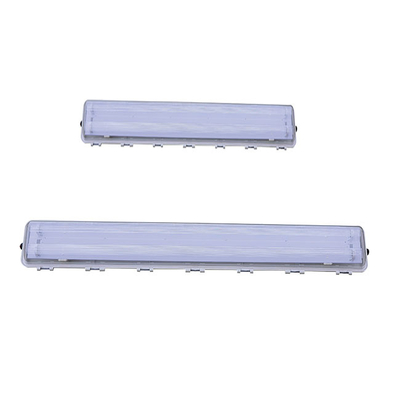

Sample pictures
